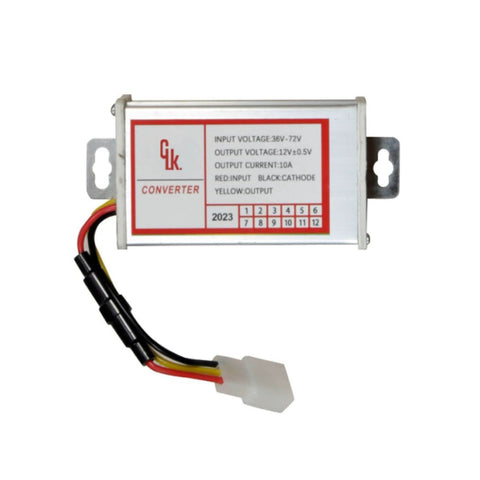

48V/60V to 12V for upto 10A load.

With built-in fuse for superior protection

Input Voltage

36V - 72V

Output Voltage

12V±0.5V

Output Current

10A

Red

Input

Black

Cathode

Yellow

Output

More Specifications

• Product type: DC to DC step down voltage converter (buck converter) with fuse protection
• Input voltage range: 36V to 72V DC, compatible with 48V and 60V e-rickshaw and e-bike battery systems
• Output current: Up to 10A continuous load capacity
• Protection: Built-in inline fuse guards against overcurrent and short circuit damage
• Wiring configuration: 3-wire setup: red for positive input, black for ground, yellow for 12V output
• Primary use case: Powers 12V accessories (headlights, tail lights, horns, indicators, digital meters) from a higher-voltage e-rickshaw or e-bike battery pack
• Compatible vehicles: E-rickshaws, e-carts, and converted e-bikes running 36V, 48V, or 60V battery systems
• Installation: Plug-and-play wiring, no additional tools required for standard setups
• Housing: Compact, lightweight unit designed for easy mounting in tight battery compartments
• Typical applications: Replacing a failed or unstable 12V accessory line, adding new 12V accessories to an existing e-rickshaw, upgrading from an unregulated to a regulated 12V supply
• Warranty and support: Backed by Geekay Bikes' after-sales support network, in business since 1961

Common Questions

• Can I run 12V lights on a 48V or 60V e-rickshaw battery? Yes, this converter regulates that voltage down safely.
• Will this protect my accessories if there's a power surge? Yes, the built-in fuse is designed for that.
• How much load can it handle at once? Up to 10A, enough for multiple accessories running together.
